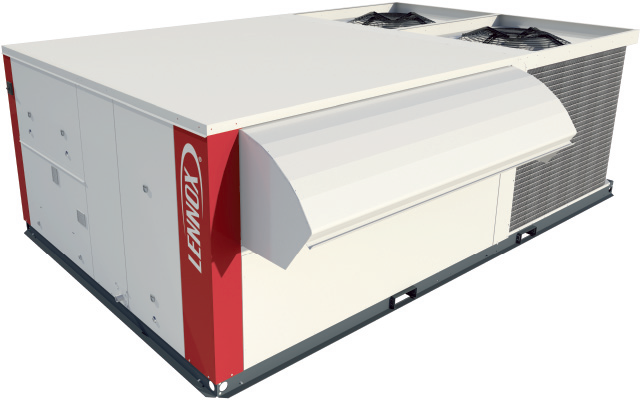

Air-cooled rooftop units

Rooftop units are the most efficient solution for the air-conditioning of spaces formed of a single volume. The LENNOX units belong to a high efficiency class due to the endowment with multiscroll compressors and usage of the R410A refrigerant.

Power range:

• BALTIC: 20 – 85 kW ; 3,600 – 19,000 m3/h
• FLEXAIR: 84 – 223 kW ; 12,000 – 43,000 m3/h

Versions:

• cooling only
• heat pump
• cooling only and gas module or hot water heating battery
• dual heat pump and gas module unit

Following versions are available for the auxiliary heating module:

• gas
• hot water heating battery
• electrical battery

Direct transmission and variable speed fan, eDrive, standard equipment ; annual energy savings of up to 30% can be achieved.

Versions with centrifugal or axial fan for the air exhaust are available.

Possibility of installing a heat recovery

The eCLIMATIC controllers are designed to improve energy performance and reliability; they control the fresh air flow and offer the possibility of free cooling and free heating; the automation allows the creation of a master/slave system and the communication with a BMS system by means of a designated card.

Overall dimensions and low weights allow a quick and easy installation.

Multiple configurations are available for air distribution

Possibility to install on pitched roofs by means of the adjustable roofcurb.
